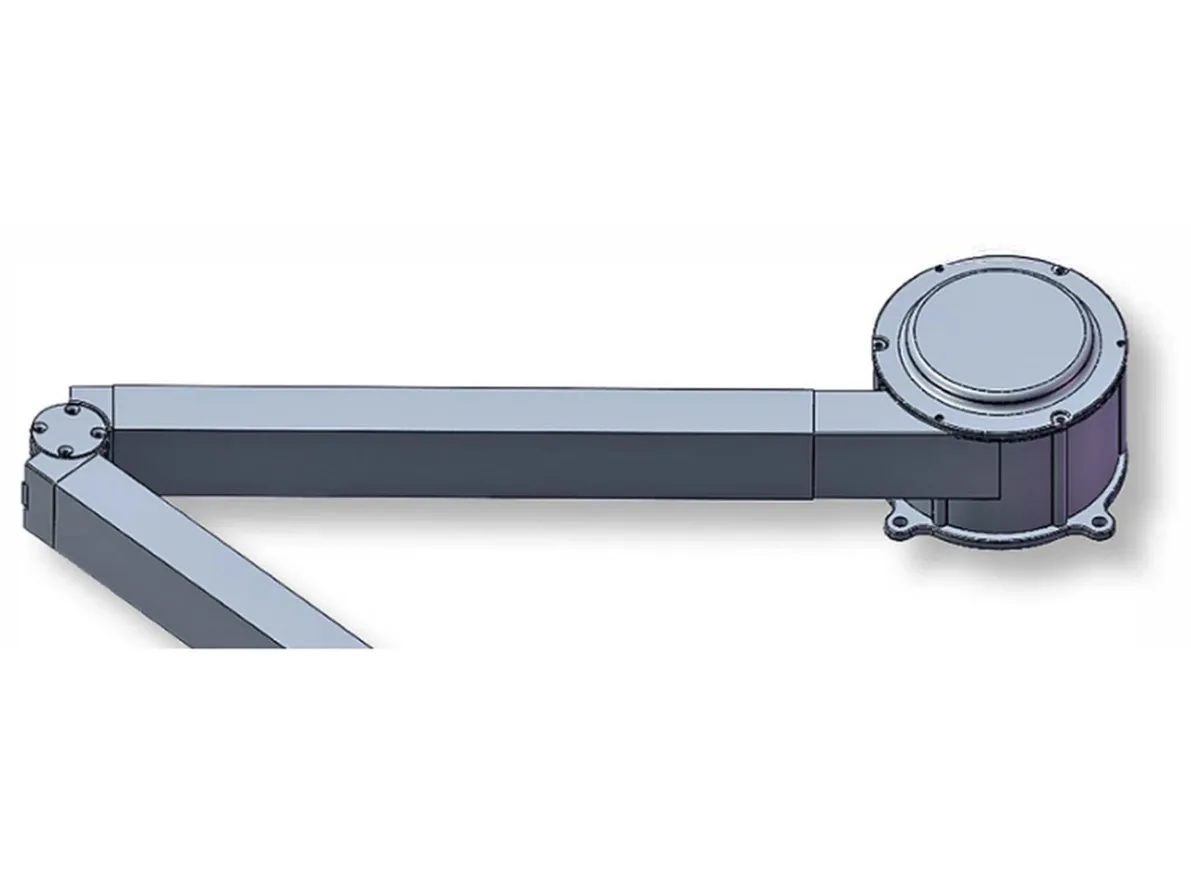

TYZ-CR400 Telescopic Folding Arm Cable Retractor
Telescopic pull-wire folding arm with retractable cable take-up, so surplus cable length is pulled back after every session. 30 kg load, 500–1000 mm arm, 720-hour salt spray tested.
Retracts the cable, not just the arm
The TYZ-CR400 takes up the surplus length of a long charging cable as well as folding the arm away. On multi-cable DC equipment and high-power pedestals, that matters: slack cable is what gets damaged, tripped over and stolen.
Built for outdoor and industrial environments
The base is die-cast aluminium, the main arm is a 60 × 40 mm aluminium extrusion and the bearing is stainless steel. The unit passes a 720-hour salt spray test with no red rust and operates from −40 °C to +60 °C, so it suits coastal, cold-climate and industrial sites alike.
Where it fits
- High-power DC charging pedestals — multiple heavy cables per bay
Public and highway sites — long cable runs, exposed conditions
- Cold-climate installations — rated to −40 °C
Fleet and depot charging — high daily cycle counts
Pulling force and stroke
Cable outlet pulling force is 50–110 N with a maximum cable outlet length of 3 m. Pulling-force attenuation stays under 1% across the service life, so the feel does not degrade over time.
Get a specification sheet
Send us the cable type, number of cables per bay and the site environment, and we will confirm the configuration and share the full specification sheet.
Specifications
Model: TYZ-CR400
Type: Telescopic pull-wire folding arm take-up reel
Max load capacity: 30 kg
Self-locking function: Optional
Main arm length: 500–1000 mm (customizable)
Auxiliary arm: None or 300 mm
Cable outlet pulling force: 50–110 N
Max cable outlet length: 3 m
Base material: Die-cast aluminium
Main arm material: 60 × 40 mm aluminium extrusion
Bearing: Stainless steel
Service life: Over 100,000 cycles, pulling-force attenuation < 1%
Salt spray: 720 hours, no red rust
Operating temperature: −40 °C to +60 °C
End fitting: Universal caster assembly
