Chargers with Display / POS Integration

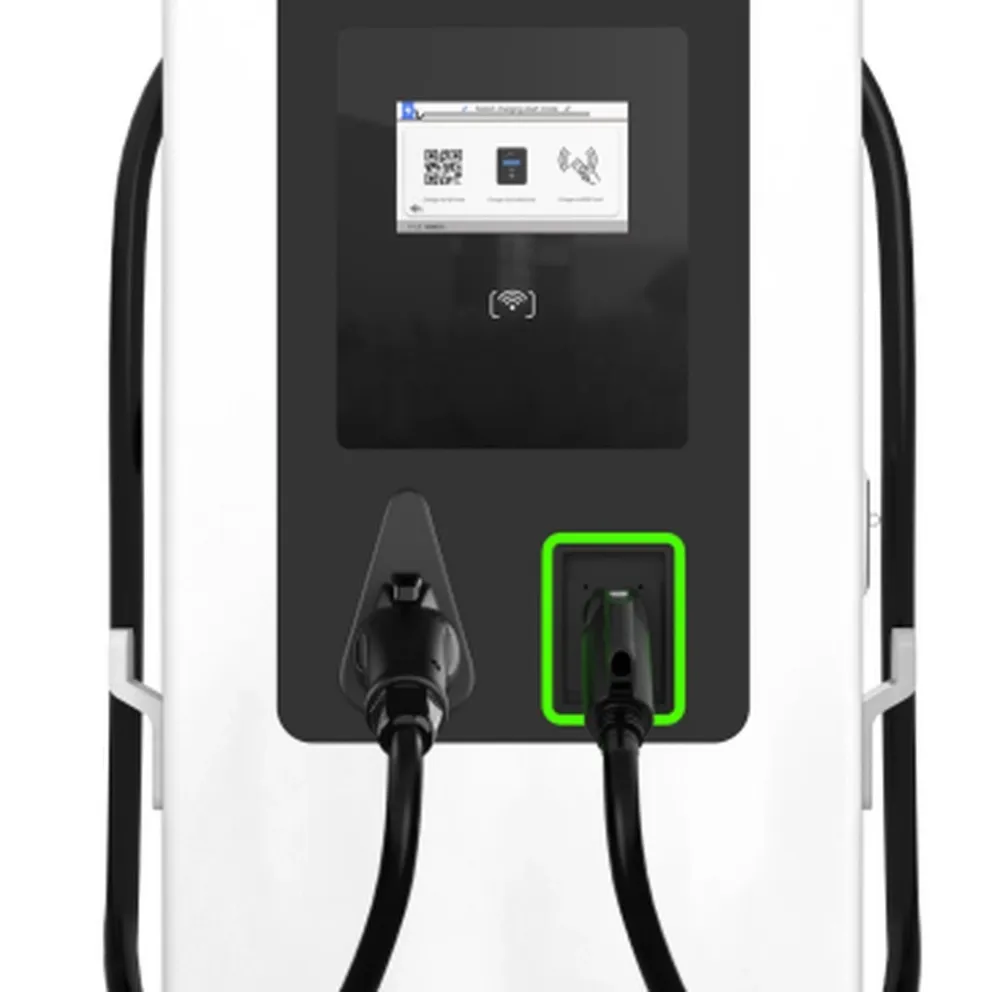

DC60kW + AC22kW Integrated Charger (Two Connectors)
Integrated AC+DC charger with DC 60kW (CCS2/CCS1) and AC 22kW (Type 2), two connectors, 10.1-inch touchscreen and OCPP 1.6J.
This integrated AC+DC charger pairs a 60kW DC fast charger (CCS2 or CCS1) with a 22kW AC charge point (Type 2), giving one cabinet both fast and destination charging.
Key features
DC 60kW with CCS2/CCS1, plus AC 22kW Type 2. 10.1-inch touchscreen, OCPP 1.6J networking, optional POS.
Specifications
Power: DC 60kW + AC 22kW
Number of connectors: Two connectors — DC: CCS2/CCS1; AC: Type 2
Cable length: 5m standard
Display: 10.1-inch touchscreen
Cooling: Air-cooled
Startup method: APP /10%Output current: CCS2 200A; AC 32AInput frequency: 45-65HzProtection: Short circuit, overload, over-temperature, leakage, over/under-voltage RFID card / POS (optional)Networking: 4G / WiFi / Ethernet / BluetoothNetwork platform: WS/WSS, OCPP 1.6J (OCPP 2.0 optional)Output voltage: CCS2/CCS1 200-1000V; AC 380VInput voltage: AC 400V±
