300kW+ Ultra-Fast Chargers
960kW Charging Stack (Power Cabinet)

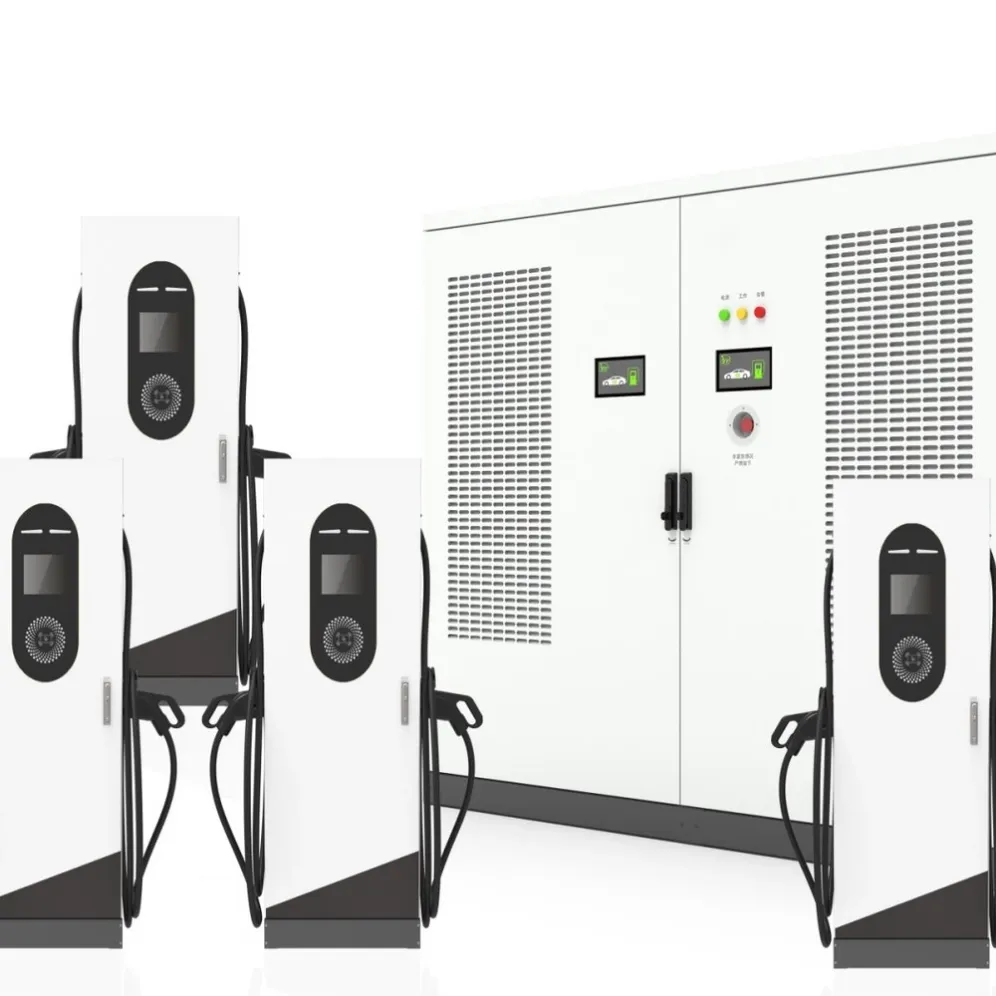

960kW charging stack with one main cabinet and 6-12 terminal connectors, 200-1000V DC, 600A liquid-cooled / 300A air-cooled per connector.
The 960kW charging stack is the largest power cabinet in the range, designed for mega charging sites where many vehicles charge simultaneously.
Key features
960kW rated power, 6-12 connectors, 200-1000VDC, 600A liquid-cooled per connector, US/EU connectors.
Specifications
Rated power: 960kW
Main cabinets: 1
Terminal connectors: 6-12
Input voltage: 380Vac (480Vac) ±15%
Rated frequency: 50Hz /95%Protection rating: IP54Relative humidity: ≤Storage temperature: -40 to +70℃ 60HzOutput voltage: 200-1000VDCMax current per connector: 600A liquid-cooled / 300A air-cooledOutput interface: US standard / EU standardDisplay: 7-inch touchscreenOperating temperature: -20 to +50℃
