300kW+ Ultra-Fast Chargers

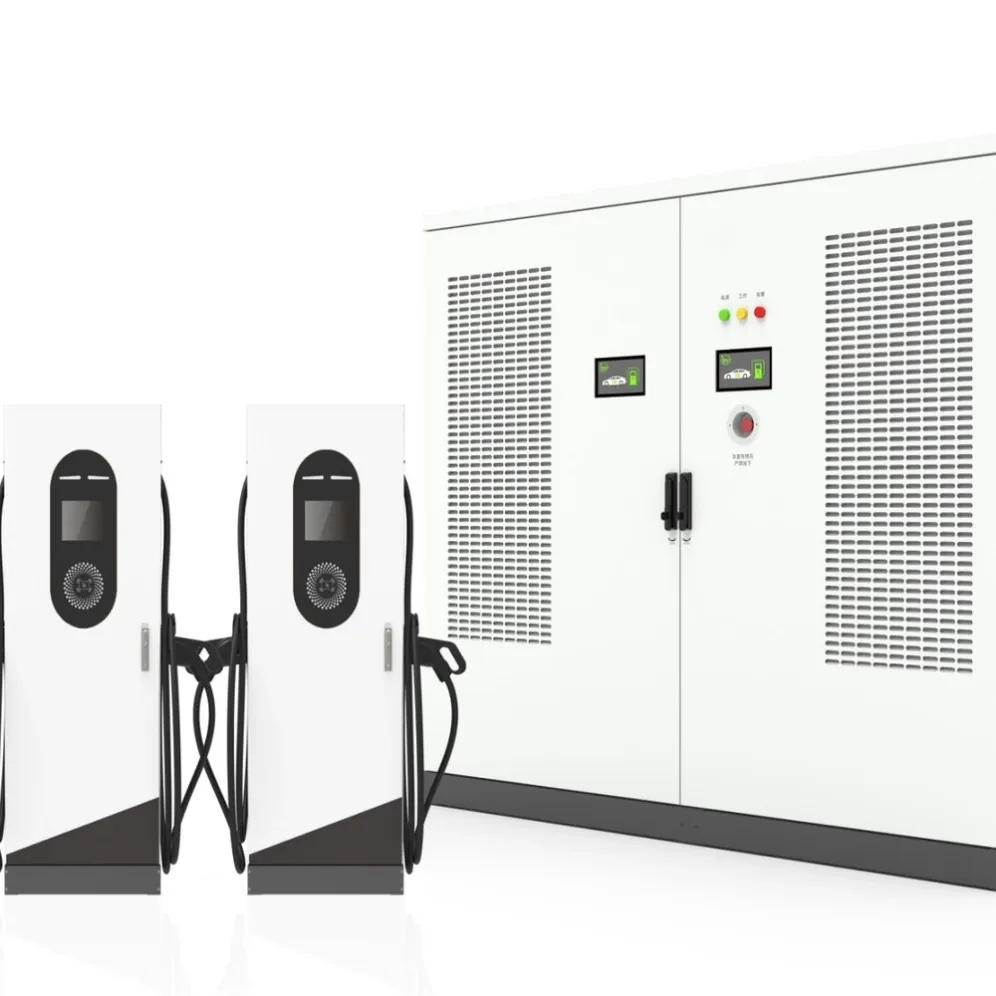

480kW Charging Stack (Power Cabinet)
480kW charging stack with one main cabinet and up to 12 terminal connectors, 200-1000V DC, 600A liquid-cooled / 300A air-cooled per connector.
The 480kW charging stack supports up to 12 connectors from a single power cabinet, with dynamic power sharing across terminals.
Key features
480kW rated power, up to 12 connectors, 200-1000VDC, 600A liquid-cooled per connector, US/EU connectors.
Specifications
Rated power: 480kW
Main cabinets: 1
Terminal connectors: 6 terminals, up to 12 connectors
Input voltage: 380Vac (480Vac) ±15%
Rated frequency: 50Hz /95%Protection rating: IP54Relative humidity: ≤Storage temperature: -40 to +70℃ 60HzOutput voltage: 200-1000VDCMax current per connector: 600A liquid-cooled / 300A air-cooledOutput interface: US standard / EU standardDisplay: 7-inch touchscreenOperating temperature: -20 to +50℃
