30-80kW DC Fast Chargers

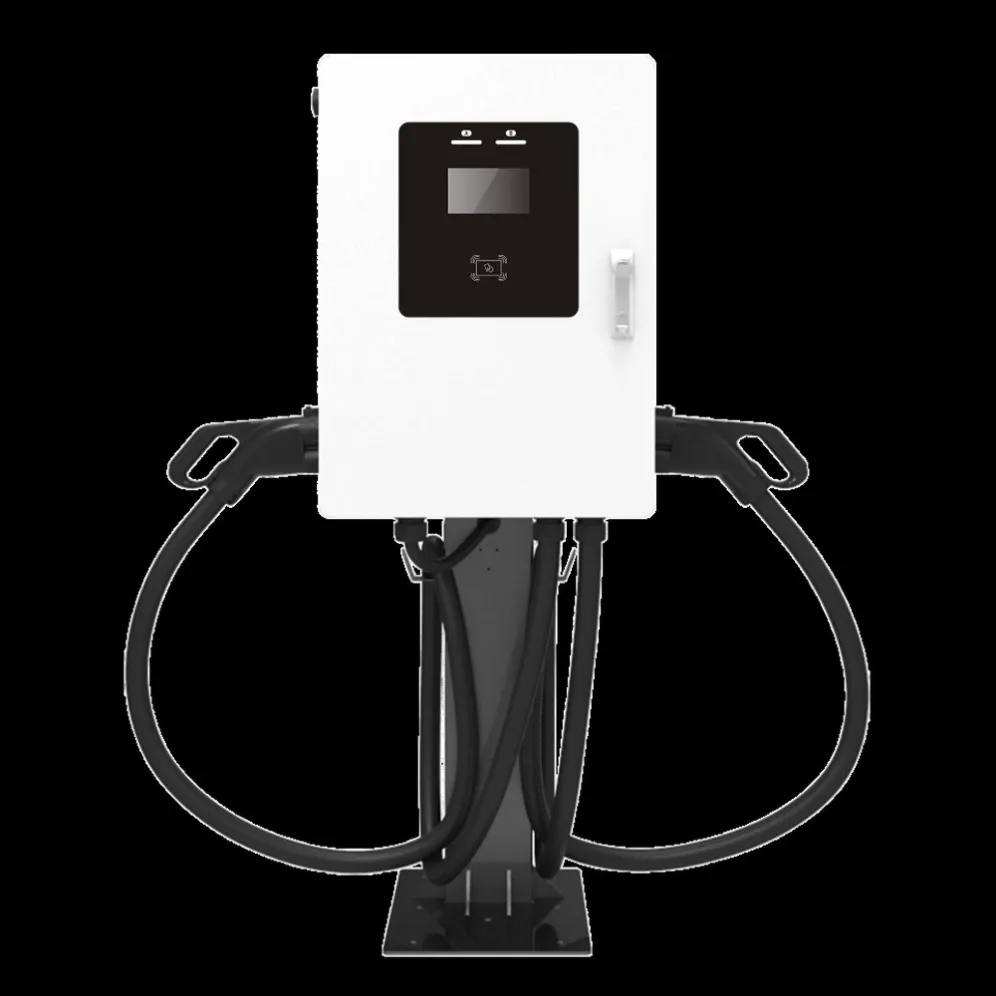

40kW Dual-Connector DC Fast Charger
40kW dual-connector air-cooled DC fast charger with 7-inch touchscreen, 200-1000V, 0-200A and optional POS. Two vehicles from one unit.
The 40kW dual-connector DC fast charger serves two vehicles from a single cabinet, with a 0-200A output and a 7-inch touchscreen.
Key features
40kW output across two connectors, 200-1000V DC, 0-200A, 7-inch touchscreen, optional POS.
Specifications
Power: 40kW
Number of connectors: Dual connector
Cable length: 5m standard
Display: 7-inch touchscreen
Cooling: Air-cooled
Startup method: APP /10%Output current: 0-200AInput frequency: 45-65HzProtection: Short circuit, overload, over-temperature, leakage, over/under-voltage RFID card / POS (optional)Networking: 4G / WiFi / Ethernet / BluetoothNetwork platform: WS/WSS, OCPP 1.6J (OCPP 2.0 optional)Output voltage: 200-1000VInput voltage: AC 400V±
