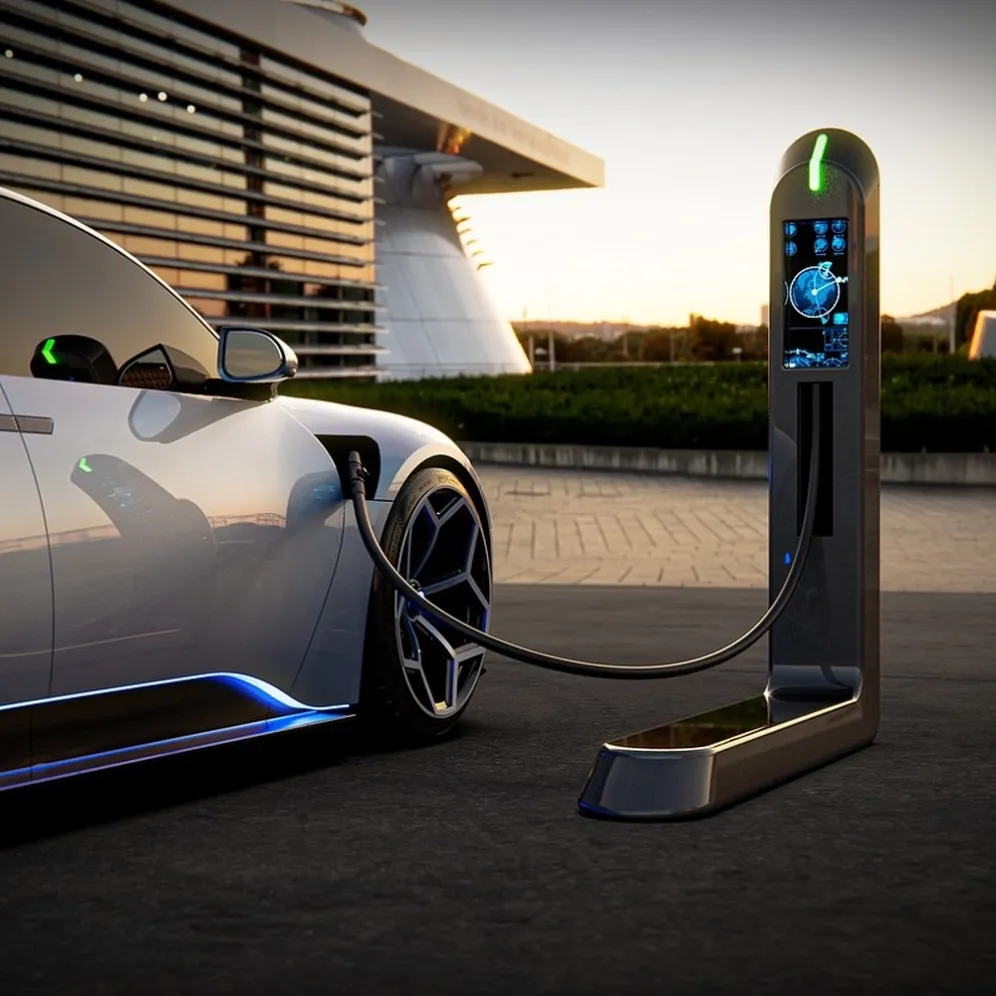

240-320kW DC Fast Charger (Low Noise)
120-320kW dual-connector DC fast charger with low-noise air cooling, 10.1-inch touchscreen, 200-1000V and 0-300A. For noise-sensitive sites.
The 240-320kW DC fast charger uses a low-noise air-cooling design for residential and noise-sensitive locations while still delivering high-power charging.
Key features
120-320kW output, two connectors, 200-1000V DC, 0-300A, low-noise air cooling, 10.1-inch touchscreen.
Specifications
Power: 120kW-320kW
Number of connectors: Dual connector
Cable length: 5m standard
Display: 10.1-inch touchscreen
Cooling: Air-cooled (low-noise design)
Startup method: APP /10%Output current: 0-300AInput frequency: 45-65HzProtection: Short circuit, overload, over-temperature, leakage, over/under-voltage RFID card / POS (optional)Networking: 4G / WiFi / Ethernet / BluetoothNetwork platform: WS/WSS, OCPP 1.6J (OCPP 2.0 optional)Output voltage: 200-1000VInput voltage: AC 400V±
