30-80kW DC Fast Chargers
20-30kW DC Fast Charger

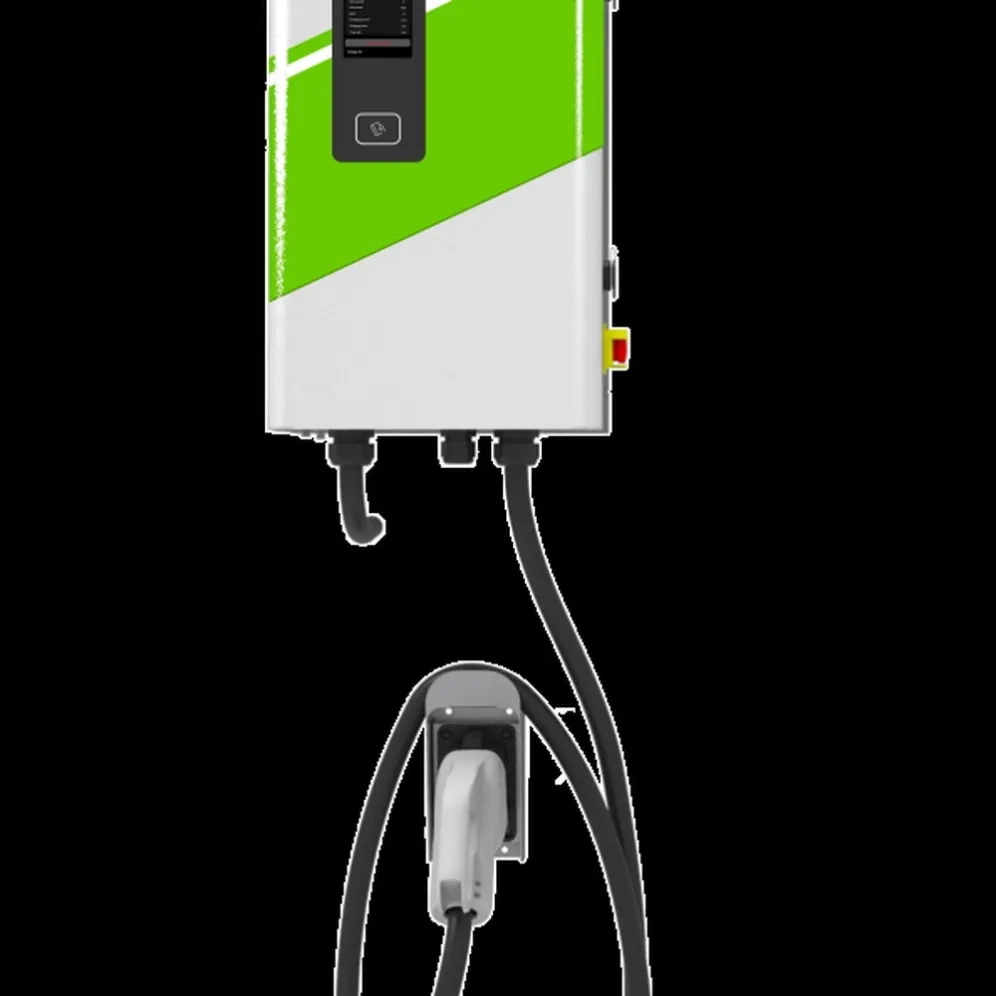

20-30kW air-cooled DC fast charger with 5-inch touchscreen, 200-1000V output, OCPP 1.6J and 0-80A current. Compact single-connector design.
The 20-30kW air-cooled DC fast charger is a compact single-connector unit for destination and fleet charging. It delivers up to 30kW with a 200-1000V output range.
Key features
20-30kW output, 200-1000V DC, 0-80A, air-cooled, 5-inch touchscreen, and OCPP 1.6J networking.
Specifications
Power: 20kW /10%Output current: 0-80AInput frequency: 45-65HzProtection: Short circuit, overload, over-temperature, leakage, over/under-voltage 30kWNumber of connectors: Single connectorCable length: 5m standardDisplay: 5-inch touchscreenCooling: Air-cooledStartup method: APP / RFID cardNetworking: 4G / WiFi / Ethernet / BluetoothNetwork platform: WS/WSS, OCPP 1.6J (OCPP 2.0 optional)Output voltage: 200-1000VInput voltage: AC 400V±
