Commercial AC Chargers

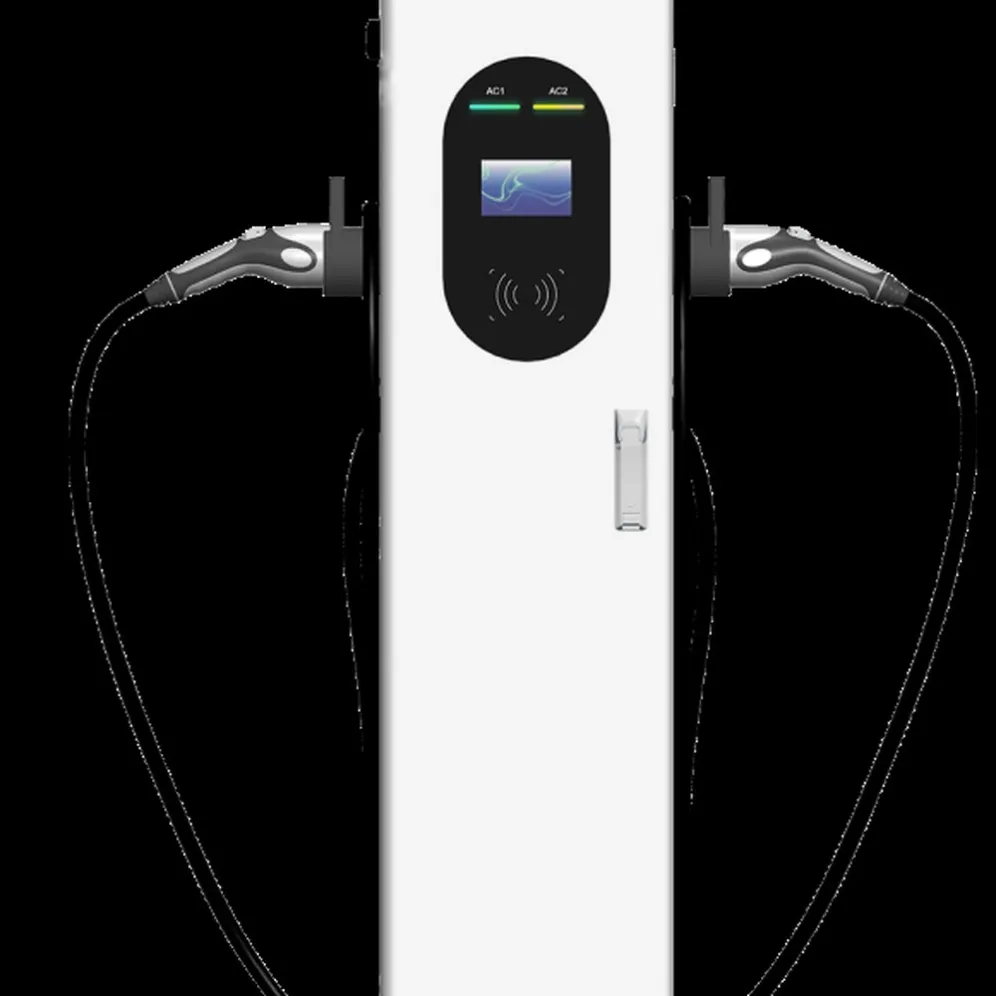

14-42kW AC EV Charger (Freestanding)
14-42kW freestanding AC EV charger with dual connectors, 5-inch touchscreen, OCPP 1.6J and DLB. 1400mm column design for public charging.
The 14-42kW freestanding AC EV charger uses a 1400mm column that suits parking lots and curbside installation. Dual connectors let two vehicles charge from one pedestal.
Key features
Freestanding column, dual connectors, 5-inch touchscreen, OCPP 1.6J, DLB and PEN protection.
Specifications
Power: 14kW /20%Output current: 32A / 63AInput frequency: 48-65HzProtection: Short circuit, overload, over-temperature, leakage, over/under-voltageExtended functions: DLB, PEN, AC PLC (ISO 15118-2), PnC / V2G / V2H (in development)Dimensions: 1400mm x 350mm x 160mmProtection rating: IP54 42kWNumber of connectors: Dual connectorCable length: 5m cable / socket optionDisplay: 5-inch touchscreenStartup method: APP / RFID cardNetworking: 4G / WiFi / Ethernet / BluetoothNetwork platform: WS/WSS, OCPP 1.6J (OCPP 2.0 optional)Input voltage: AC 220V±
